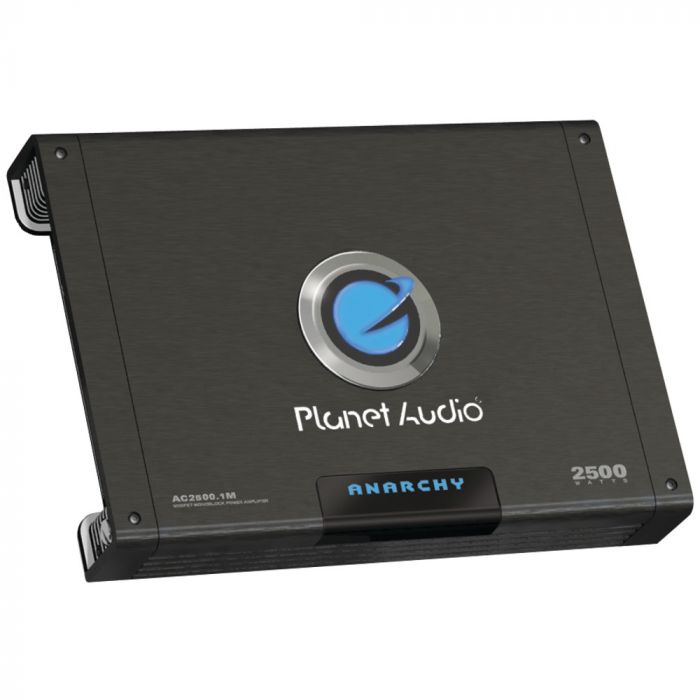

Planet Audio AC2500.1M Anarchy Class AB Mono Amplifier 1500W x 1 @ 4 Ohm

Description

Unit includes: 1-Channel power amplifier, Bass control knob, Extension cable, Mounting hardware, and Instruction manual

Planet Audio AC2500.1M 2500 Watt Class AB 1-Channel Amplifier

Features:

2500 Watts Max Power
Pulse Width Modulated MOSFET Power supply
Class-AB design for excellent sound quality and full range output
3-Way Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Short circuit protection prevent damage when speaker leads are shorted. Overload protection prevent damage from low impedance or blown woofers.
Variable Low Pass filters allow you to adjust the playback frequencies from 45Hz to 90Hz at 24dB per octave
Speaker level inputs allow you to connect this amplifier stereo system that do not have RCA outputs. The is very typical for OEM head-units and you can now avoid adding separate line level converters.
2 channel RCA inputs accepts up to 6 volt input signals
Soft-turn on to prevent speaker popping
Remote Subwoofer level control
Bass boost controls: 0-10dB at 40Hz
Variable subsonic filters: 0-18dB at 6Hz - 70 Hz
Chrome plated terminals for all connections
Frequency Response: 20Hz to 20KHz
Total Harmonic Distortion (4 Ω): < 0.01% (1kHz)
Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): >102dB
Channel seperation: 90dB
Damping factor: 125+
Dimensions: 14" (W) x 10" (H) x 2-3/16" (D)

RMS Power Rating:

4 ohms: 900 watts x 1 channel
2 ohms: 1800 watts x 1 channel1

Maximum Dynamic Power Rating:

4 ohms: 1250 watts x 1 channel
2 ohms: 2500 watts x 1 channel

Specifications

More Information
Manufacturer	Planet Audio
Part Number	AC25001M
Amplifier Topology Class	Class AB
Number of Channels	1 Channel
Total RMS Power at 1 ohm	$0.00
Total RMS Power at 2 ohm	$1,875.00
Total RMS Power at 4 ohm	$938.00
Total Peak Power Output	$2,500.00
Amplifier Bridging	Not Bridgable
Minimum Impedance in Un-Bridged Mode	2 ohm
Strappable Amplifier	No
RCA Pre-amp Audio inputs	1 Pair
RCA Pre-amp Audio outputs	1 Pair
Preamp voltage	6 volts
Speaker level inputs	Yes
Gain Control	Yes
Bass Knob / Remote Gain	Yes
Built in Crossover	Low-pass
Cooling Fan	No
Color	Black
Warranty	1 Year
Recommended Power Wire Gauge	4 Gauge
CEA2006 Compliant	No
UPC Code	636210103714
Return period	30 days
Exchange period	30 days
