Axxess AX-CH013 2004 - and Up Chrysler radio replacement CAN-BUS interface with navigation outputs
$77.99
In stock
SKU
AX-CH013
Expert Knowledge
Talk to a specialist
- Chrysler, Jeep, Mitsubishi, and Volkswagen complete radio replacement interface for plug-and-play installation of an aftermarket car radio
- Interface is designed for non-amplified models, amplified models, or when bypassing a factory amplifier
- Pre-wired for steering wheel control interface (Sold separately)
- Provides NAV outputs (parking brake, reverse, and speed sense)

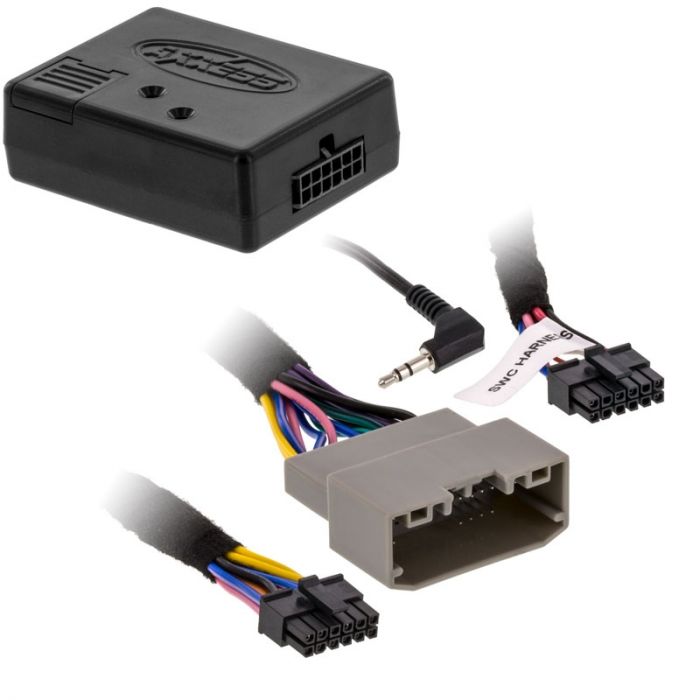

Unit includes: AX-CH013 Interface control box, LD-BX-CH1 harness, LD-BX-CH2 harness, and Instruction manual
Axxess AX-CH013 2004 - and Up Chrysler radio replacement CAN-BUS interface with navigation outputs
Axxess AX-CH013 2004 - and Up Chrysler radio replacement CAN-BUS interface with navigation outputs
- Features:
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Used in both non-amplified and amplified audio systems
- Retains chimes
- Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
- ASWC-1 harness included (ASWC-1 not included)
- High level speaker input
- USB updatable
- Retains balance and fade on non-amplified audio systems
- Axxess AX-CH013 2004 - and Up Chrysler radio replacement CAN-BUS interface Instruction manual
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Orange/White - Dash Light Dimmer/Illumination
- Blue/White - Amplifier turn on
- Light green - (-) Parking brake lead
- Blue/Pink - VSS (Vehicle speed sensor)
- Green/Purple - (+) Reverse trigger
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
-
Compatible Models (LD-BX-CH1 Harness)
- 2005 - 2007 300
- 2007 Aspen
- 2006 - 2010 PT Cruiser
Chrysler
-
Dodge
- 2007 - 2008 Caliber
- 2006 - 2007 Charger
- 2005 - 2007 Dakota
- 2004 - 2007 Durango
- 2005 - 2007 Magnum
- 2009 Ram 2500/3500
- 2006 - 2008 Ram
- 2006 - 2010 Ram Chassis Cab
-
Jeep
- 2006 - 2007 Commander
- 2007 - 2008 Compass
- 2005 - 2007 Grand Cherokee
- 2007 - 2008 Patriot
-
Mitsubishi
- 2006 - 2007 Raider
- Compatible Models (LD-BX-CH2 Harness)
- 2011 - Up 200
- 2008 - 2010 300
- 2008 - 2009 Aspen
- 2007 - 2010 Sebring
- 2008 - Up Town and Country
Chrysler
-
Dodge
- 2008 - 2014 Avenger
- 2009 - 2012 Caliber
- 2008 - Up Grand Caravan
- 2008 - 2014 Challenger
- 2008 - 2010 Charger
- 2008 - 2011 Dakota
- 2008 - 2013 Durango
- 2009 - 2010 Journey
- 2008 - 2009 Magnum
- 2007 - 2011 Nitro
- 2010 - 2011 Ram
- 2009 Ram 1500
- 2011 Ram Chassis Cab
-
Jeep
- 2008 - 2010 Commander
- 2009 - Up Compass
- 2008 - 2013 Grand Cherokee
- 2008 - 2012 Liberty
- 2009 - Up Patriot
- 2007 - Up Wrangler
- 2007 - Up Wrangler Unlimited
-
Mitsubishi
- 2008 - 2009 Raider
- Ram
- 2012 1500/2500/3500
- 2012 Chassis Cab
- 2000 - 2000 C/V Tradesman
-
Volkswagen
- 2009 - 2013 Routan
| Manufacturer | Axxess |
|---|---|
| Part Number | AX-CH013 |
| Integration Module | Radio Replacement |
| Wiring harness function | Replace Factory Radio |
| Steering Wheel Control | Yes, requires external module |
| Speaker level inputs | Yes |
| Warranty | 1 Year |
| Vehicle Brand | Chrysler, Dodge, Jeep, Mitsubishi |
| UPC Code | 086429329960 |
| Return period | 30 days |
| Exchange period | 30 days |
