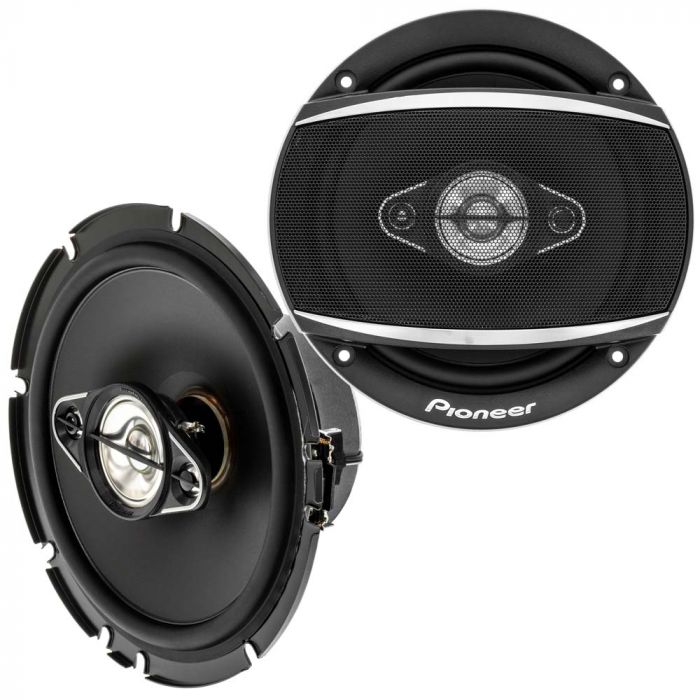

Pioneer TS-A1680F 6-1/2" 4-Way Coaxial Speakers
$109.99
In stock
Only 2 left
SKU
TSA1680F
Expert Knowledge
Talk to a specialist
- Oversized 6-1/2" speakers
- Designed to fit 5-5/8 inch openings
- Multilayer Mica Matrix Cone Design for clear sound
- 350 Watts Max Power (60 Watts Nominal)
- 3/4" PET Dome tweeter
- Frequency Response: 36 Hz to 24 kHz
Unit includes: Pair of 6-1/2" speakers, Pair of speaker grills, Adapter Plates, Mounting Screws and Instruction manual
-
Features:
- Oversized 6-1/2" Woofer with strontium ferrite magnet for precision bass
- Designed to fit 5-5/8 inch openings
- Integrated 4-Way design with super and ultra tweeters
- 1-5/8. cellulose fiber cone midrange
- 11mm polyethylene terephthalate (PET) hard dome tweeters
- Multi-Layer Mica Matrix woofer cone for optimum sound reproduction and responsiveness
- PET dome tweeters with Neodymium magnets provide solid vocals
- Speaker Adapter Plates allow universal installation
- Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers
- Pioneer’s CarSoundFit app is actually a car sound simulator for experiencing in-car sound with your own smartphone
- Carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
- Lightweight elastic polymer surround for high sensitivity
- Heat-resistant voice coil wire for heat dissipation and durability to withstand high input power
- Smooth off-axis response
- Passive Crossover Network
- Cooling basket with air vent for increased cooling to process improved power handling
- Spider design incorporates the same material used in the PRS series of high-end component speakers for stiffer suspension and more accurate response
- Max power: 350 watts
- RMS Power: 60 watts
- Frequency response: 36 Hz to 24 kHz
- Sensitivity: 88 dB
- Impedance: 4 ohms
- Type: 4-Way
- Crossover frequency: 3.6 KHz
Power Handling Max
Power Handling RMS
Quick Specs
| Manufacturer | Pioneer |
|---|---|
| Part Number | TS-A1680F |
| Speaker Size | 6 1/2 inch |
| Speaker system type | 4 - way |
| Frequency Response | 36 Hz - 25 kHz |
| Voice coils | Single voice coil |
| Impedance (per voice coil) | 4 ohm |
| Power Handling RMS | 80 Watts |
| Power Handling Peak | 350 Watts |
| Sensitivity | 88 dB |
| Mounting Depth | $2.13 |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 884938409735 |
| Return period | 30 days |
| Exchange period | 30 days |
