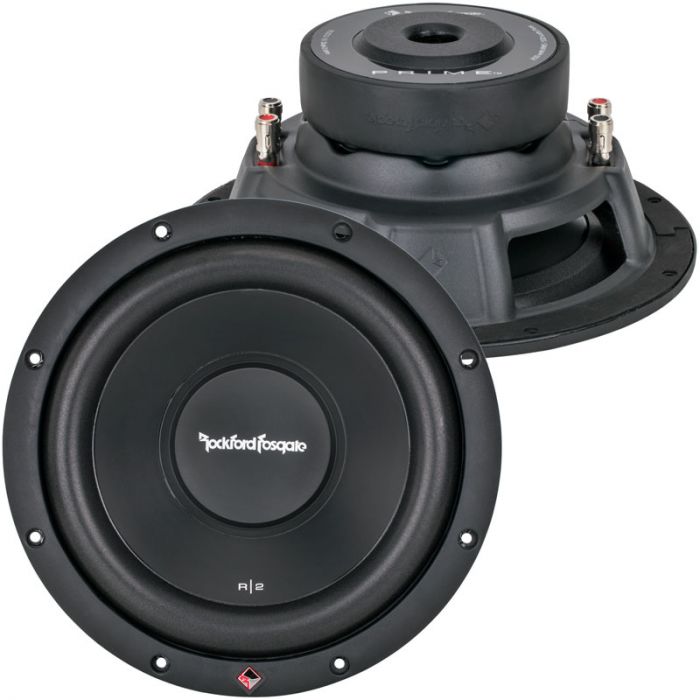

Rockford Fosgate R2D2-10 10" Prime R2 Series Subwoofer - Dual 2-Ohm Voice Coil
$74.99
Out of stock
SKU
R2D2-10
Expert Knowledge
Talk to a specialist
- 10” DVC subwoofer featuring dual 2-Ohm voice coils and 250 Watts RMS of power handling
- 12 AWG compression terminals
- StampCast basket with spider venting that keeps the motor cool
- Anodized Aluminum Voice Coil Former for quick heat dissipation
- Linear spider with embedded 16 AWG tinsel leads
- Mica injected polypropylene cone for enhanced bass
- Optimized for both vented and sealed enclosures
Includes: Car subwoofer driver, integrated PVC trim ring and Instruction manual.
Rockford Fosgate R2D2-10 10" Prime R2 2-Ohm DVC Subwoofer:
Features:
Power Handling Max:
Power Handling RMS:
Quick Specs
Dimensions:
Features:
- 10 inch subwoofer with dual 4 ohm voice coils, allowing you to wire woofer as a 4 ohm or 1 ohm woofer
- 2 inch high-temperature voice-coil
- 43 ounce magnet
- Optimized for both sealed and vented enclosures
- Anodized aluminum voice coil former
- 12 AWG compression terminals
- Mica injected polypropylene cone
- StampCast basket with integrated spider venting
- Integrated PVC trim ring
- Linear spider with embedded 16 AWG tinsel leads
Power Handling Max:
- Maximum Power: 500 Watts
Power Handling RMS:
- 250 Watts nominal continuous power handling RMS
Quick Specs
- Nominal Impedance: Dual 2 - Ohm
- Sensitivity: 86.9 dB @ 1Watt / 1meter
Dimensions:
- Mounting depth: 4.319 inches (109.7 mm)
- Cutout diameter: 9.125 inches. (232 mm)
| Manufacturer | Rockford Fosgate |
|---|---|
| Part Number | R2D2-10 |
| Driver Size | 10 inch |
| Subwoofer Shape | Round |
| Voice coils | Dual voice coil |
| Impedance (per voice coil) | 2 ohm |
| FS | 34.6 Hz |
| QES | 0.50 |
| QMS | 6.93 |
| QTS | 0.47 |
| RE | 3.9 |
| VAS | 39 L |
| Xmax (millimeters) | 6.5 |
| Sensitivity | 87 dB |
| Frequency Response | 45 - 250 Hz |
| Sub enclosure type | Banpass, Ported / Vented, Sealed |
| Power Handling RMS | 200 Watts |
| Power Handling Peak | 500 watts |
| Shallow Mount Subwoofer | No |
| Mounting Depth | $4.00 |
| Cutout Dimensions | $9.00 |
| Sealed Enclosure Recommended Size | 0.59 ft3 |
| Ported Enclosure Recommended Size | 1.4 ft3 |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 780687332532 |
| Return period | 30 days |
| Exchange period | 30 days |
