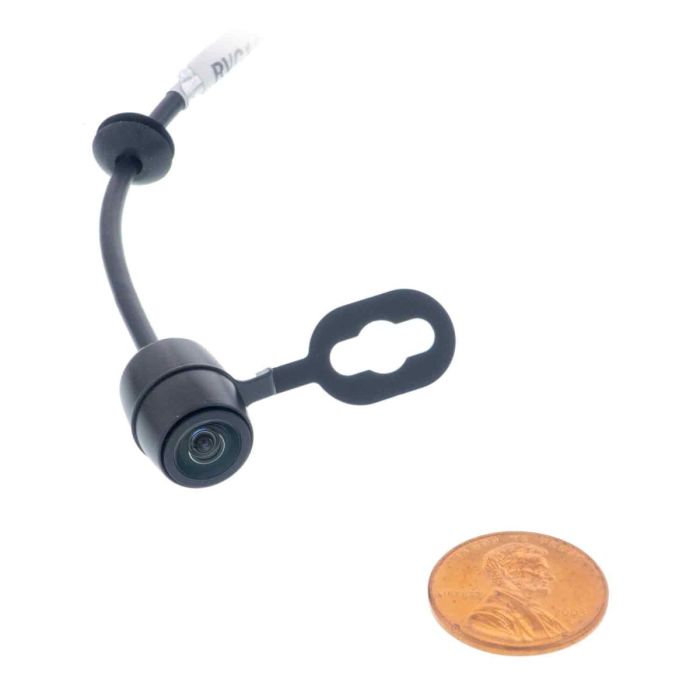

Accelevision RVC1300M Surface and Flush Mount Color Mini Rear View Camera - Standard image - Non reverse
$149.99
In stock
SKU
RVC1300M
Expert Knowledge
Talk to a specialist
- Ultra Micro surface or flush mountable
- 170° Wide viewing angle
- Surface or flush mountable
- Reverse or Standard Viewing
Unit includes: Micro Camera, Surface mounting tab, Flush mounting cup, 20ft pigtail, 6ft pigtail and Instruction manual
Accelevision RVC1300M Surface and Flush Mount Color Mini Rear View Camera
Accelevision RVC1300M Surface and Flush Mount Color Mini Rear View Camera
- Features:
- 1/3" color CMOS sensor
- 2.96mm lense
- Selectable Mirror or non mirror input wire for front or rear camera use
- Super small design for easy mounting nearly anywhere
- Scanning system: 2:1 interface
- Resolution: 640(H) x 480(V)
- AGC: auto White balance: auto
- Electronic shutter: 1/60 - 1/10,000 second
- Lens f=2.96mm / F=2.0
- Illumination: 0.2 LUX / F 1.2
- Supply voltage: DC 5-15V
- Current consumption: 40mA @ DC 12V,
- Water Proof: IP68
- Viewing Angle: 170°(diagonal) / 150°(horizontal) / 100°(vertical)
- One year warranty parts & labor
- Dimensions:
- Camera body dimensions: .41" (D) x .7" (L)
- Flush mount adapter: 12mm (Drill diameter) x 6mm (L)
| Manufacturer | Accelevision |
|---|---|
| Part Number | RVC1300M |
| Camera Sensor type | CMOS |
| Back up camera type | Bullet Camera |
| Camera diameter | 2.96 mm |
| Viewing Angle | 170 degrees |
| Wireless Transmission | Wired connection |
| Waterproof ingress protection | IP68 - Dust; Immersion beyond 1 m |
| Reverse Image | Selectable |
| Parking grid lines | No |
| Infrared Illumination | No |
| Built in Microphone | No |
| Connector Type | RCA Cable |
| Modulation | NTSC only |
| Operation Voltage | 8-15 Volt DC |
| Battery Powered | Hard wired |
| Color | Black |
| Overall Height | $0.40 |
| Overall Length | $0.70 |
| Overall Width | $0.40 |
| Warranty | 1 Year |
| UPC Code | 736836554621 |
| Return period | 30 days |
| Exchange period | 30 days |
