Swann SWNVK-472004-US Platinum-HD 1080p NVR with 4 NHD-820 Cameras - 4 channel NVR
$1,390.99
Out of stock
SKU
SWNDK-472004-US
Expert Knowledge
Talk to a specialist
- 4 Channel 1080p Network Video Recorder
- High Definition 1080p Full HD Resolution
- RJ45 Network Cable Connection
- 2TB Hard Drive
- Includes 4 Cameras
- View Remotely on your Smartphone or Tablet
- Cameras have 75° Viewing Angle
- 60 foot CAT5E Ethernet cables included

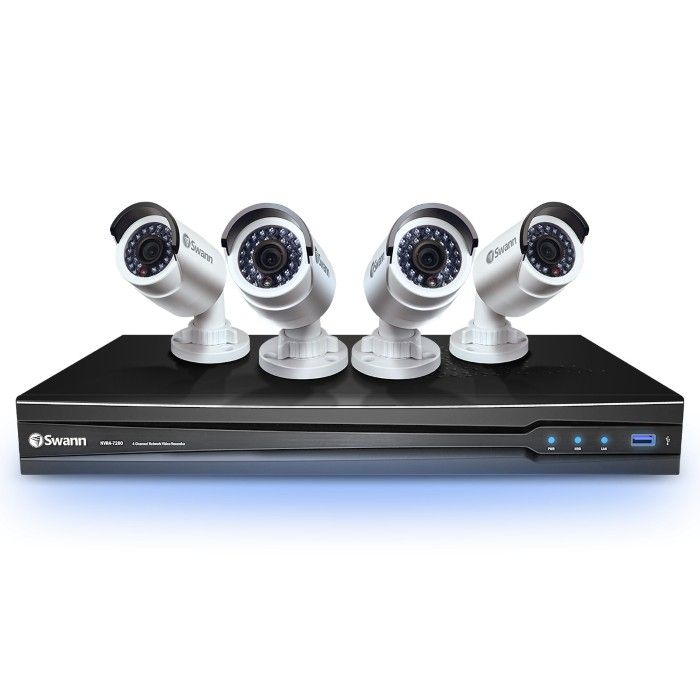

Unit includes: 4 Channel NVR4-7200 DVR recorder, 4 - NHD-820 cameras, 4 - 60 foot CAT5E Ethernet cables, HDMI Cable, USB Mouse, 6 foot Cat5E Ethernet Cable, Power cable & , Mounting Screws & Plugs, 4 - Theft Deterrent Stickers, and Operating Instructions
Swann SWNVK-472004-US Platinum-HD 1080p NVR with 4 NHD-820 Cameras - 4 channel NVR features:
NVR Video features:
NVR Internet features:
DVR Video inputs and outputs:
NHD-820 Camera features:
Swann latest network video security system with 1080p high definition live viewing & playback. The system records in real-time with 25 / 30 frames per second per channel. Get state-of-the-art digital imaging technology that offers 5 times the picture sharpness of traditional security systems including analog D1.
The SWNNVK-472004 Includes 4 x Full HD 1000 TVL cameras capable of generating crystal clear 1920 x 1080 pixels (2.1 Megapixels without interpolation) video with IR cut filters for extra-powerful night vision to 115ft / 35m and an all weather resistant rating of IP66 for indoor & outdoor use.
You can set & forget by recording continuously from 4 channels for 45+ days onto a 2TB hard drive (expandable to 4TB^) or even longer with motion detection & have peace of mind by easily locating incident video, then transfer to external storage via USB or network
While away you can have the security in the palm of your hand with live viewing on your Smartphone or tablet including iOS (iPhone, iPad) & Android devices using the free SwannView app with email notifications if there is activity
You can also view the video live in 1080p HD on your HDTV via HDMI or VGA connection to your LCD screen
Professional surveillance system gives you peace of mind by being able to see the detail you need from longer distances including license plates, faces, clothing colors & more, all in full HD
Incredibly easy installation for the do-it-yourselfer as cameras are powered by the NVR & connect via single CAT5E Ethernet cables (included). Connect the NVR to the internet in minutes using the setup software wizard.
Swann SWNVK-472004-US Platinum-HD 1080p NVR with 4 NHD-820 Cameras - 4 channel NVR features:
NVR Video features:
- 4-channel IP addressable DVR with H.264 video compression
- NTSC or PAL video format option
- HDMI video ouput
- VGA output
- Output display resolutions: 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
- Display frame rate: NTSC: 30fps per channel / PAL: 25fps per channel
- H.264 Compression format
- Recording Resolution: Full HD 1080p (1920 x 1080)
- NTSC Recording Frame Rate: 120 Frames total, 30 Frames per channel
- PAL Recording Frame Rate: 100 Frames total, 25 Frames per channel
- Recording modes: Motion detection, Continuous, Alarm, and Manual
- Sata2 HDD interface
- 2 TB HDD installed capacity with 4TB upgradable
NVR Internet features:
- Ethernet connection with 10/100Mbps port
- TCP/IP, PPPoE, DDNS, UPnP, Ipv6 network capable
- DNS capable
- UPnP capable
DVR Video inputs and outputs:
- AC power jack
- Operating voltage: 120 -240 Vac 47 - 63Hz 3Amp
- Front USB jack
- Rear USB jack
- RJ45 Network Ethernet jack
- VGA output
- HDMI output
- RCA audio output
- 1 - RCA audio inputs
- 4 - RJ45 100Mbps PoE inputs
- 4 - Alarm inputs
- 1 - Alarm outputs
NHD-820 Camera features:
- Includes: 4 - NHD-820 CMOS day night cameras
- 2.1 Megapixels without interpolation
- Full 1920 x 1080 pixels
- 115ft Night-vision distance
- RJ45 Network output
- 30 frames per sec
- Sturdy weather-resistant IP66 rated camera housing for use outdoors or indoors
- 75 degree Viewing Angle
- Backlight Compensation
- IR Cut Filters
- Operating Temperature: -20°C ~ 60°C / -4°F ~ 140°F
| Manufacturer | Swann |
|---|---|
| Part Number | SWNDK-472004-US |
| Max DVR Channels | 4 channel |
| DVR HDD Capacity | 2 TB |
| Length | 60 Feet |
| Wireless Transmission | Wired connection |
| Infrared Illumination | Yes |
| Built in Microphone | No |
| Included cameras | 4 cameras |
| Camera Sensor type | CMOS |
| Sensor Size | 1/3 inch |
| Lines of Resolution | 1080p |
| Minimum Illumination | 1lux@F1.2, 0 lux with IR |
| Color Camera | Yes |
| Viewing Angle | 80 degrees |
| IR LED Count | 48 |
| Infra-Red Wavelength | 850nm |
| Gain Control | Yes |
| Focus | Auto |
| AGC (Automatic Gain Control) | Built In |
| IR range (ft) | 160ft to 170ft |
| OSD (On Screen Display) | No |
| Modulation | NTSC and PAL |
| Lens Included | No |
| Lens Type | Fixed focal length |
| Electronic Shutter | Auto |
| Relative Aperture (F-stop) | 1.2 |
| Focal Length (mm) | 4mm |
| Color | Black |
| Housing material | Metal |
| Vandal-proof | No |
| Outdoor | Yes |
| Waterproof ingress protection | IP66 - Dust; String Water Jets/Waves |
| Battery Powered | Hard wired |
| Ac Adapter included | Yes |
| Operation Voltage | 12-15 Volt DC |
| Connector Type | RJ45 Connector |
| Signal type | NVR PoE |
| Warranty | 1 Year |
| UPC Code | 815849015234 |
| Return period | 30 days |
| Exchange period | 30 days |
