Metra TYTO-01 2001 and Up Lexus and Toyota amplified audio system interface
Metra TYTO-01 2001 and Up Lexus and Toyota amplified audio system interface
Key Features
Integrates with JBL Toyota Audio systems Designed for Lexus audio systems Interface is designed to be used with factory amplified systems and converts aftermarket radio outputs to factory amplified audio system inputs 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy USB firmware updatable

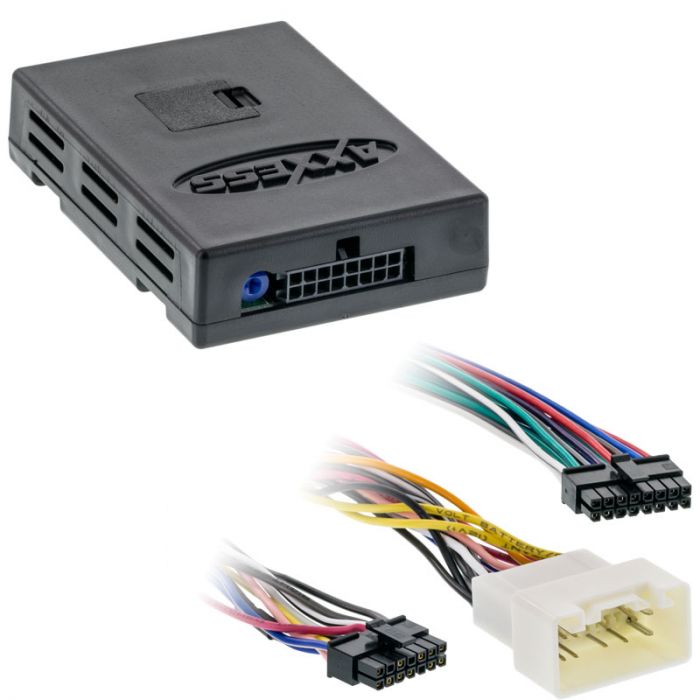

Unit includes: A) TYTO-01 interface, B) 16-pin harness, C) 14-pin harness to 20-pin Toyota harness, and Instruction manual
Metra TYTO-01 2001 and Up Lexus and Toyota amplified audio system interface:
Interface Features:
Provides accessory output for databus signals (12-volt 10-amp capable output)
Works with JBL and JBL Synthesis Audio systems
Designed for Lexus audio systems
Interface is designed to be used with factory amplified systems and converts aftermarket radio outputs to factory amplified audio system inputs
Can be used with ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
USB firmware updatable
Retains balance and fader
Connections:
Yellow - 12V Constant
Red - 12V Accessory
Black - Ground
Orange - illumination
Blue with White Stripe - Amplifier turn on
Brown - Radio mute (Not Used)
Light Green - Parking brake(Not Used)
Blue with Pink Stripe - VSS (Vehicle speed sensor)(Not Used)
Green - Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White - Left Front Speaker (+)
White with Black Stripe - Left Front Speaker (-)
Purple - Right Rear Speaker (+)
Purple with Black Stripe - Right Rear Speaker (-)
Gray - Right Front Speaker (+)
Gray with Black Stripe - Right Front Speaker (-)
Kit Components:
A) CHTO-02 interface
B) 16-pin harness
C) 20-pin harness to 22-pin Toyota harness
D) Instruction manual
Tools Required:
Optional parts:
More Information
Manufacturer
Metra
Part Number
TYTO-01
Wiring harness function
Replace Factory Radio
Warranty
1 Year
UPC Code
086429158669
Return period
30 days
Exchange period
30 days
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
