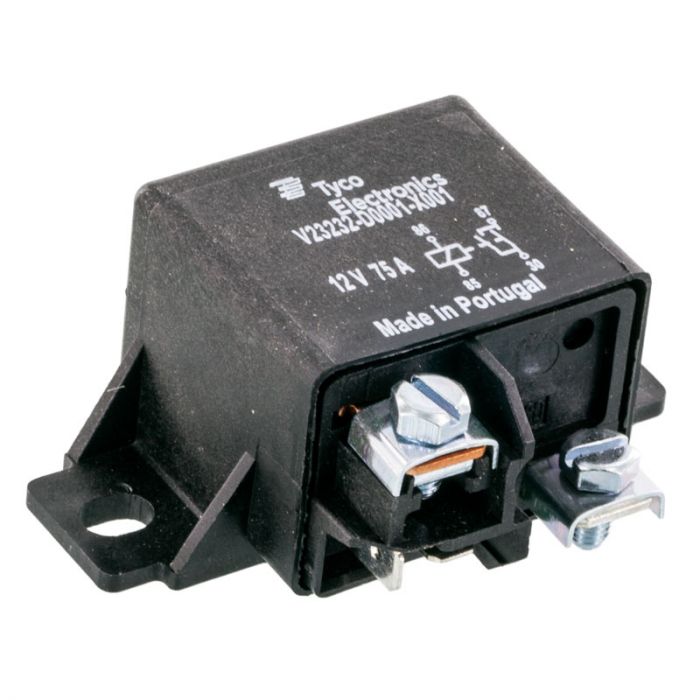

Tyco V23232-D0001-X001 75-Amp High Current Relay

The Tyco V23232-D0001-X001 is a high current 12 Volt relay that is designed for large loads. This relay is commonly used in automotive electrical and security installations. It easily switches 75 amps of current and peaks of 105 amps with minimal draw on the coil of 260 milliamps @ 12Vdc. It features dual plastic mounting tabs and a plastic housing. Single Pole, Single throw for flexible installations and multiple uses such as accessory or electrical bus turn on.

Features:
• High current relay
• 75 amp / 105 amp rated contacts
• SPST - Single pole single throw
• 12 Vdc rated coil with minimum 6 volt to trigger
• Power consumption @ 12Vdc 260 mA
• Conventional 87, 30, 86, and 85 pin locations
• Compatible with most insulated and non insulated terminals and screw terminals
• Dimensions 2-7/8" (W) x 1-3/8" (D) x 2-1/8" (H) with terminals and tab
• Lifespan: 125,000 cycles @ 75 amps
• Lifespan: 100,000 cycles @ 100 amps
