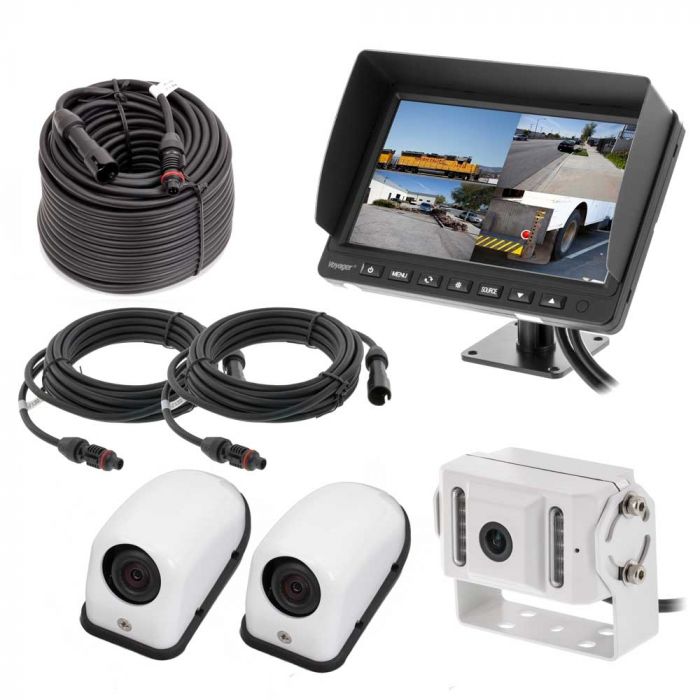

Voyager VOS74TQKIT 7'' TFT Quad Screen Back Up Camera System

Description

Unit Includes: 7 inch LCD monitor, Wiring harness, Sun visor shroud and Instruction manual

Audiovox VOM74TQ 7'' TFT Quad Screen LCD Video Monitor with flush mount shroud

Features:

7" TFT/LCD Active Matrix Video Monitor
Quad screen display for viewing of four cameras simultaneously
Capacitive touchscreen for easy control
15 display modes
16:9 Widescreen letterbox display
Super bright for day-time use with Day / Night brightness modes
Beautiful black housing perfect for mounting on dash of an RV
Monitor has multiple mounting patterns on back for use with Voyager and Panavise mounts 38mm (W) x 30mm (H) pattern - AMPS compatible
White Back-lit buttons for easy adjustments at night
High Resolution: 480 X 234 for excellent picture quality
4 triggered video inputs for auto switching as turn signals or reverse gear is entered
Touchscreen camera selection via front mounted buttons
Removable sun shade for extra bright ambient light situations
Compatible with Audiovox Voyager cameras
Trigger delay setup - specify the length the trigger signal must be present before switching, helps avoid needless camera switching
Camera naming function
Distance marker or parking grid can be enabled and disabled with adjustable lines via the OSD (On Screen Display)
OSD - (On Screen Display) allows for all adjustments

Inputs and Outputs

4 - 4 Pin S-Video type camera input connectors
1 - Channel 1 trigger: Blue wire
1 - Channel 2 trigger: Brown wire
1 - Channel 3 trigger: Green wire
1 - Channel 4 trigger: Orange wire
1 - 10 - 32Vdc positive input: Red wire
1 - Ground input: Black wire
1 - 2-way split screen trigger: Yellow wire

Dimensions and Specifications:

Operating Temperature: -20 degrees C ~ +65 degrees C
Storage Temperature -35 degrees C ~ +80 degrees C
Power Requirement: 10Vdc - 32Vdc
Power Consumption: 600 mA
LED backlit for 20,000 hour lifespan
Brightness: 500 NIT
Contrast Ratio: 300:1
Dimensions: 7" (W) x 4-3/4" (H) x 1-1/8" (D)

Audiovox VoyagerVCMS155 Surface Mount Reverse Back up camera

Features:

Surface mounted camera for mounting on an overhang or the back of a RV or commercial vehicle
High sensitive 1/4" HD color CMOS image sensor for excellent color and night capabilities
10 - Built in LED's for night vision, see in complete darkness
Built in microphone so you can hear everything behind you
White aluminum housing that matches nearly every vehicle color
75° vertical angle adjustment with 4 retaining screws so camera cannot vibrate free
Selectable between front or reverse image
Pixel resolution: 800 x 533
Corrosion resistant (ASTM B117)
Mini Illumination: .05 Lux
155° horizontal viewing angle
Waterproof IP69K
9 - 16 volt operation
Camera dimensions: 3-3/4" (Wide) x 2" (Deep) x 2" (H)

Audiovox Voyager VCMS12LWT 1/3" Left Side Mount Color Camera with 131 degree Wide Angle

Features:

High Resolution Side Mount Camera
1/3" CMOS Image Sensor
525 TV lines of resolution
131 degree wide angle lens
Reverse mirror image
Camera is fixed within housing and has rubber base plate for better vibration damping
1.0 LUX for great low light situations
IPX6 rated for Waterproof, Shockproof and High Temperature Resistance
Left Side Mount Application
High strength steel bracket with removable Zinc metal cosmetic housing that prevents permanent damage to the camera
4 Pin Waterproof Voyager Connector
Dimensions: 3-1/4" (L) x 1-3/4" (H) x 1-3/4" (D)
Also available in Chrome and Grey as a special order

Specifications

More Information
Manufacturer	Voyager
Part Number	VOS74TQKIT
LCD Screen Size	7 inch - 8 inch
Native Screen Resolution	480 x 234
Widescreen Display	16:9 Widescreen Display
LCD Screen Brightness	450 Nit
LCD back light type	LED
Auto Dimming	Yes - Screen Dimming
Trigger wire	Yes
Modulation	NTSC and PAL
Slide track on back	No
Image Flip Function	Image rotate
Built in Speakers	Yes
Mount included	Yes, Pedistal stand
Auto on/off	Yes
Cigarette Lighter Cord Included	No
Audio Video inputs	4 Video Input
Wireless Remote Control	No
Monitor Type	Stand alone monitor
Back up camera type	Surface Mount Camera
Product Options	No Compass and Temperature Guage
Homelink	No Homelink transmitter
Built in Bluetooth	No Bluetooth
Reverse Image	Yes - Reverse Image
Camera Sensor type	CMOS
Viewing Angle	120 degrees
Parking grid lines	Yes
Built in Microphone	Yes
Infrared Illumination	No
Waterproof ingress protection	IP68 - Dust; Immersion beyond 1 m
Battery Powered	Hard wired
Connector Type	4 Pin Connector
Wireless Transmission	Wired connection
Color	White
Operation Voltage	12-32 Volt DC
Warranty	1 Year
Return period	30 days
Exchange period	30 days
