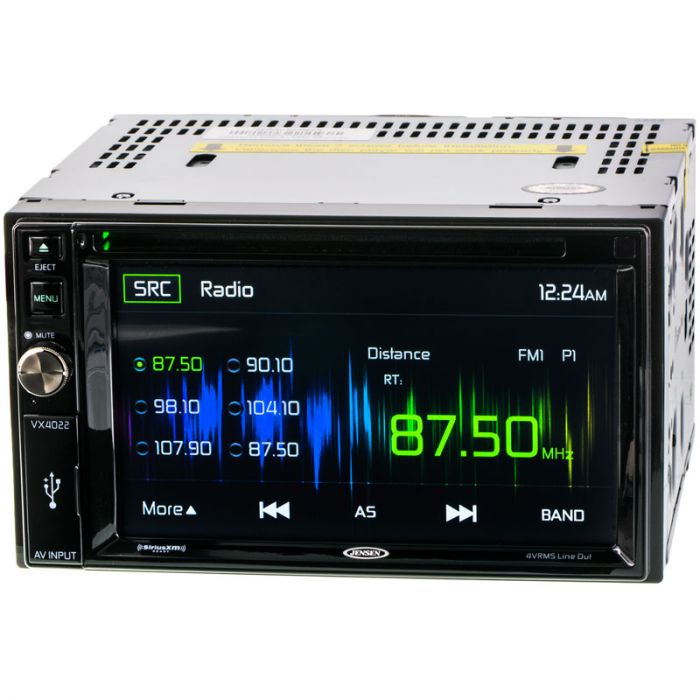

DISCONTINUED - Jensen VX4022 Double DIN In Dash 6.2" Bluetooth DVD/CD/AM/FM Car Stereo Receiver with HDMI
$267.99
Out of stock
SKU
VX4022
Expert Knowledge
Talk to a specialist
- Double DIN In-Dash Bluetooth CD/DVD receiver
- Bluetooth connectivity for hands free calling, phone book access, music streaming
- Rear HDMI input
- Front USB and SD Inputs
- AM/FM tuner
- 10-band EQ
- Steering wheel control input
- Backup Camera Input
Unit includes: Double DIN Stereo, Wiring harness(2), Steering Wheel Control harness, Remote control, Mounting hardware, Bluetooth microphone and Instruction manual
Jensen VX4022 Double DIN In Dash 6.2" Bluetooth Car Stereo Receiver
Media playback features:
Tuner features:
Power Ouput:
Inputs and outputs:
- Features:
- Double DIN In-Dash CD/DVD receiver
- 6.2 inch high resolution touch screen display
- Bluetooth connectivity for Smart Phones for hands free calling, phone book access, music streaming and A2DP music playback
- Variable button illumination for perfect matching of your factory button color
- App Connectivity for Android, Apple and BlackBerry
- 5 Selectable Wallpaper Backgrounds / User Up-loadable Wallpaper
- 5 Selectable UI colors
- 10-band equalizer with 8 preset tone curves
- Dimmer and brightness control
- AM/FM tuner
- Rear HDMI input
- Backup Camera Input
- Steering Wheel Control Ready
- Displays CD text and MP3 ID3 Tag including title, artist & album
- Front USB, 3.5,mm AUX and Micro SD Card input
Media playback features:
- Plays CD, CD-RW, CD-R, MP3, WMA, AAC, and WAV files
- MP3/WMA/iTunes AAC/FLAC Audio Playback on CD/USB
- MP3 ID3 tag information, display artist and song information
Tuner features:
- Includes AM & FM tuner with 24 preset stations memory
- RDSB (Radio data service) Tuner
Power Ouput:
- Peak: 40 watts x 4 channels
- RMS: 13 watts x 4 channels
- Bluetooth features:
- Integral Bluetooth technology facilitates convenient hands-free phone calls and audio streaming
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
- Bluetooth 3.0 certified
- Bluetooth 2.1+ EDR certified
- Bluetooth Auto Pairing
- Wireless Music Browsing
Inputs and outputs:
- 3 - 4V preamp outputs (Front, Rear and Subwoofer)
- 1 - Micro SD Card Slot
- 1 - Front USB connection
- 1 - Front 3.5mm AUX
- 1 - Rear HDMI input
- 1 - Backup Camera Input
- 1 - Video Output
- 1 - Sirius XM input
- 1 - Rear microphone input
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Dimensions:
- Single DIN chassis
- Dimensions: 7"W x 6-1/4"D x 4"H
| Manufacturer | Jensen |
|---|---|
| Part Number | VX4022 |
| Chassis Size | Double DIN |
| Illumination color | Full Color |
| Disc Playback | DVD |
| Anti-Shock | Yes |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| HD Radio | No |
| Radio Data Service - RDS | Yes |
| Satellite Radio | Sirius XM Ready |
| Front mounted auxiliary input | 3.5 mm audio input |
| Audio Video inputs | 2 Audio Video Inputs |
| Audio Video Outputs | 1 Video output |
| USB input | Yes |
| SD Card input | Yes, microSD Card |
| RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
| Preamp voltage | 4 volts |
| Steering Wheel Control | Yes, requires external module |
| Wireless Remote Control | Yes |
| Warranty | 1 Year |
| UPC Code | 043258305893 |
| Return period | 30 days |
| Exchange period | 30 days |
